Implant monobloc hydrophobePrimus-HD® / Yellow

L’implant intraoculaire Primus-HD® / Primus-HD® Yellow est un dispositif médical de classe IIB.

Mandataire : Ophthalmo Pro GmbH
Distributeur : Ophta-France
Organisme notifié : ECM

Ces informations techniques sont à destination des professionnels de santé. Pour un bon usage du produit, merci de vous reporter à la notice du produit.

Caractéristiques techniques
Type Monofocal
Matériau Acrylique hydrophobe
Filtre UV (Primus-HD® Yellow avec filtre de lumière bleue)
Design Monobloc
Anses en C
Optique Biconvexe, convexe en postérieur, asphérique mais correctrice
Spécifications Préchargé
Bords carrés à 360°
Diamètre optique / Diamètre total 6.00 mm / 13.00 mm
Angulation 1.5°
Puissance (dioptrie) – 10.0 D à + 36.0 D (par pas de 0.5 D)
Constante A estimée Ultrasonique : 118.9
Constante A optimisée pour biomètre optique Nominal : A = 118.9
Hoffer Q : pACD = 5.68
SRK/T : A = 119.2
HAIGIS : a0 = 1.46 / a1 = 0.40 / a2 = 0.10
HOLL. : sf = 1.91
SRK II : A = 119.6

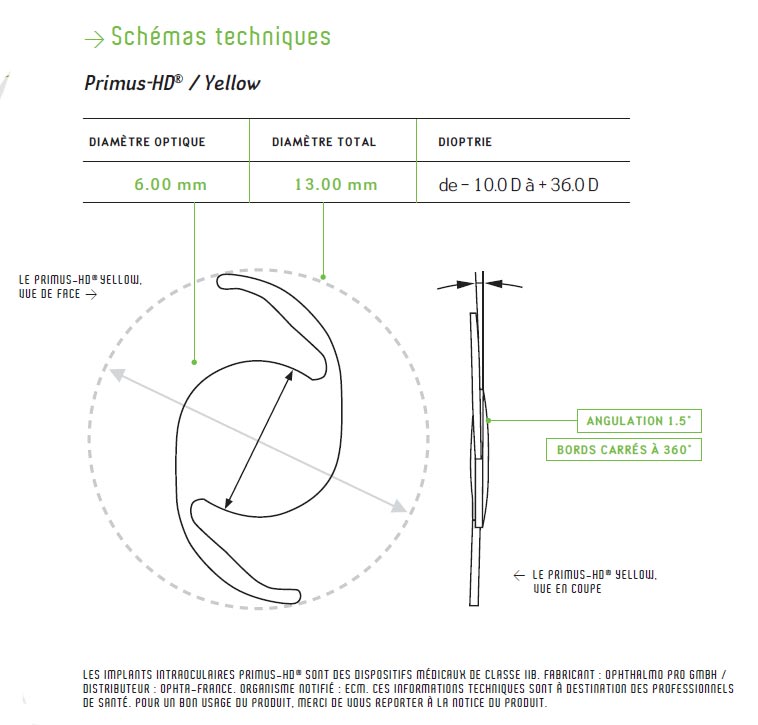

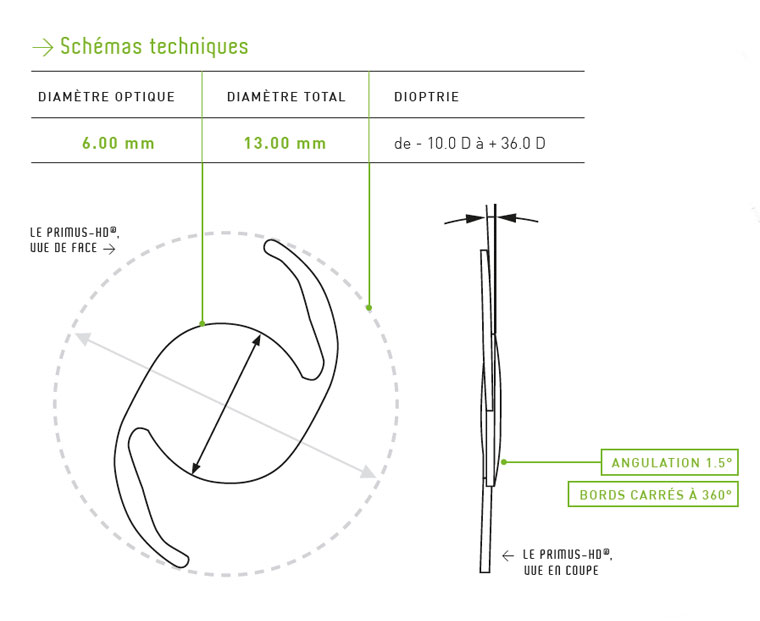

Schéma technique
Schéma implant PRIMUS HD YELLOW
Chargement de l’injecteur Prosert®
Implantation lentille intraoculaire PRIMUS-HD® Yellow – incision 2.2 mm
Implantation lentille intraoculaire PRIMUS-HD® – incision 2.0 mm
PRIMUS HD YELLOW
